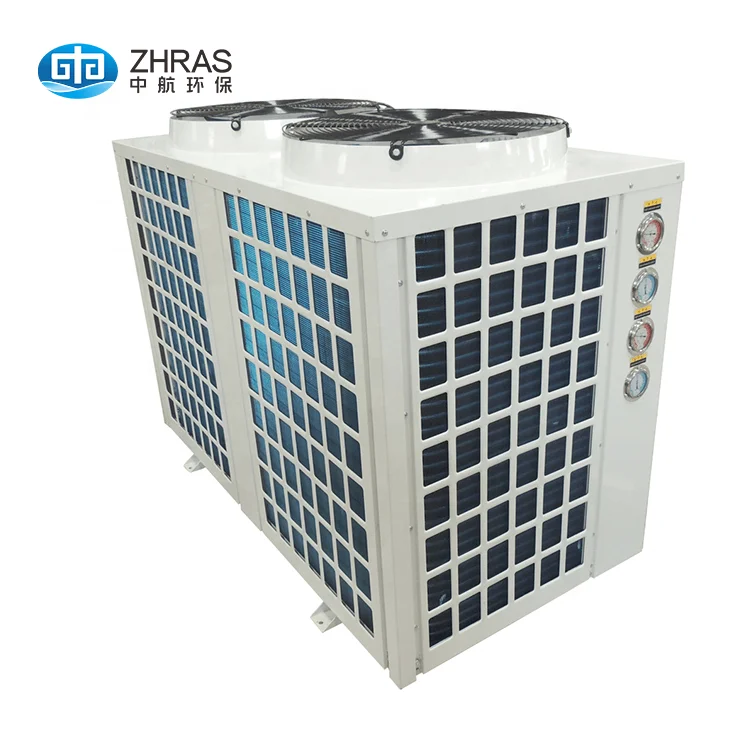

ZH-HC20 chiller and heater temperature controller equipment machine for ras fish farm



Product Description

Model No.: ZH-HC20

Cooling Capacity: 52KW   Heating Capacity:58KW

Power:   16KW

Water Flow rate:cold water:145L/min  hot water:165 L/min

Water pipe Joint: 2.0 inch

Power Supply: 380V 3N 50HZ

Safety Protection Device:high and low pressure protection; Compressor overload over current protection; open phase protection; Low/High temperature protection; open circuit protection; low voltage protection; water lack protection; Exhaust temperature protection

Refrigerant: R22

Condenser: copper fin and tube air cooling type heat exchanger  20HP

Evaporator:PVC shell titanium tube heat exchanger  20HP

Compressor:  Copeland scroll compressor

Fan:   Dia.600MM×2

Electronic Temperature Control:

Temp Range:5℃~40℃   Temperature Resolution:0.1℃

Dimension:1800×1000×1800mm

N.W:720KG

1212-15750 (3)ras

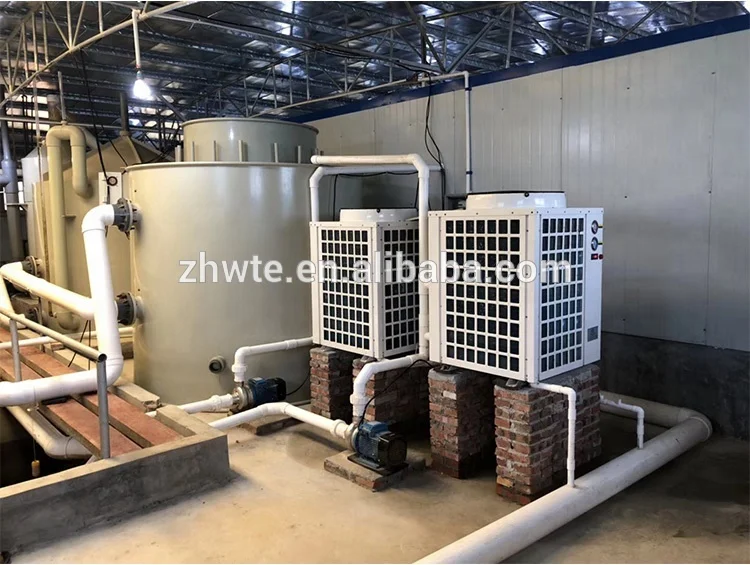

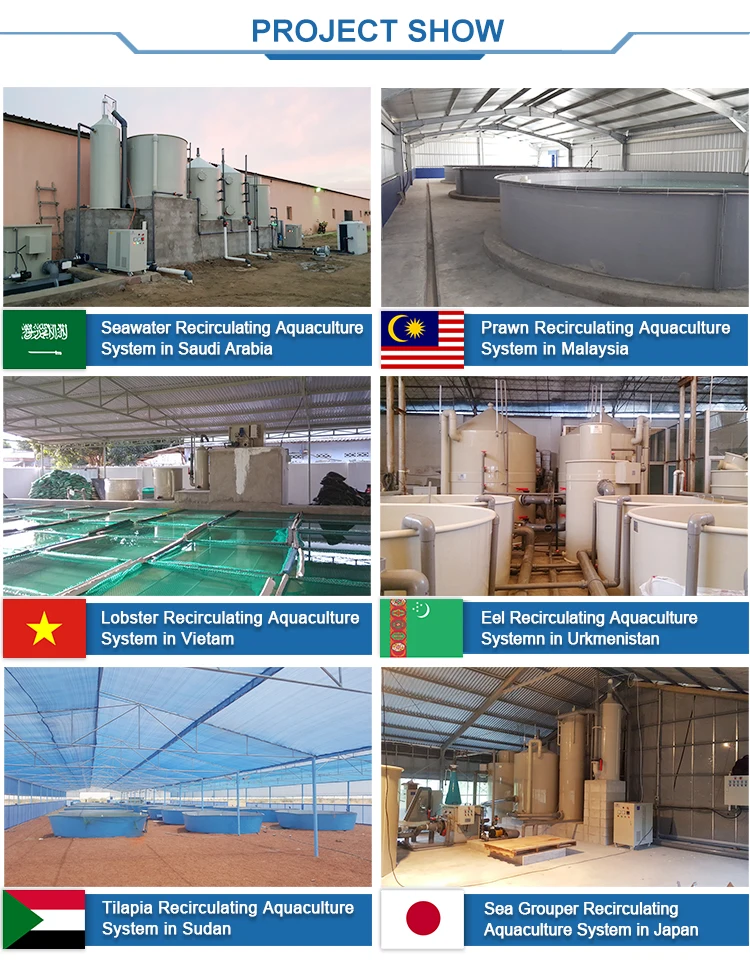

Project Show

 ---3-23_02

Installation Service

 ---3-23_04

Company Profile

 ---3-23_06

Our Customers

 ---3-23_07

Production Process

 ---3-23_08

Our Certificate

 ---3-23_09

---3-23_10
